From TSMC’s Gigafab Ecosystem to the Tesla Terafab Vision
Is Tesla’s Terafab the next semiconductor revolution—or an impossible challenge to TSMC’s decades-built ecosystem?
Tesla CEO Elon Musk said over the weekend that the company’s Terafab project to manufacture artificial intelligence (AI) chips will launch in seven days. This article compares the TSMC model with Musk’s ambitious proposal to help readers assess its feasibility.
To decrease the dependency on TSMC, Musk said he wants to build a semiconductor mega-factory capable of producing up to 200 billion chips per year, in order to meet the demand for computers in the fully autonomous electric vehicles, AI training clusters, and robotic platforms.
"I think they are getting clean rooms wrong in these modern fabs," Elon Musk claimed in an interview with Moonshots, that the fabs should be designed differently, and he will bet that Tesla will have a 2nm fab where he can eat a cheeseburger and smoke a cigar in the fab.
For a corporation like Tesla, which has traditionally functioned as a fabless entity designing high-performance silicon such as the FSD (Full Self-Driving) and Dojo chips while outsourcing production to foundries like TSMC and Samsung Electronics, the move toward in-house fabrication represents a trillion-dollar bet on supply chain autonomy. To evaluate the feasibility of such an endeavor, it is necessary to conduct a granular examination of the incumbent benchmark for large-scale fabrication: the TSMC Gigafab ecosystem.
TSMC’s operational model is built upon a “Value Chain Aggregator” philosophy, which relies on a massive, highly synchronized network of specialized vendors. Globally, TSMC manages approximately 3,000 suppliers, a logistical feat that enables the production of over 12 million 12-inch equivalent wafers annually across its global sites.
In the specific context of its expansion into Arizona, a project that has grown from an initial $12 billion commitment to a comprehensive $165 billion investment plan for six fabs, the company is supported by a localized cluster of roughly 40 core suppliers. These partners are responsible for a range of critical functions, from nanometer-scale seismic stabilization of the building foundations to the delivery of ultra-pure process gases that must be free of contaminants at the parts-per-billion level.
The Terafab Proposition: Scaling Beyond the Gigafab

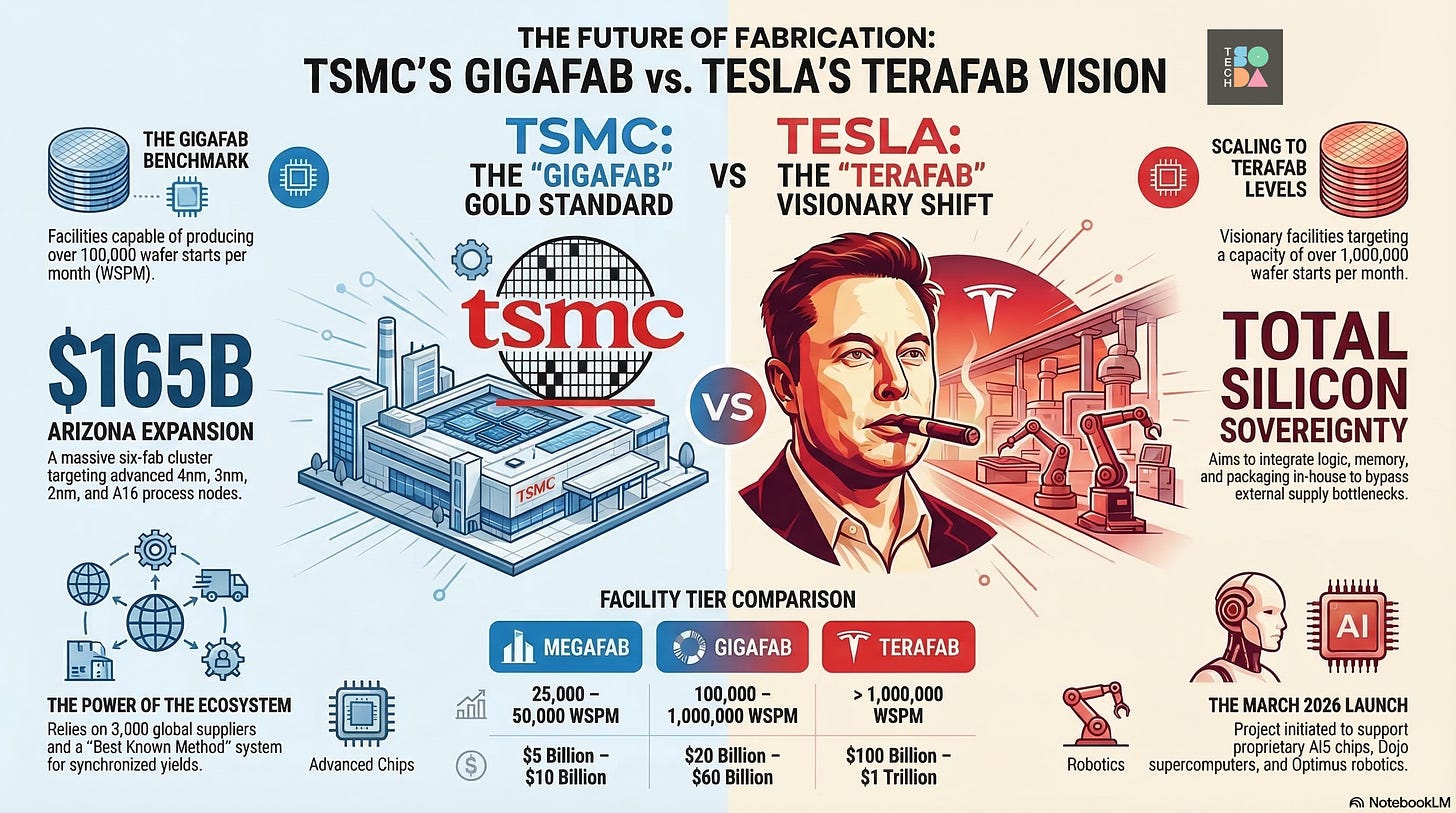

Elon Musk’s announcement on March 14, 2026, regarding the initiation of the “Terafab” project within a seven-day window, signals a fundamental shift in the strategic architecture of the AI and automotive industries. The nomenclature “Terafab” implies a facility or network of facilities whose production capacity significantly exceeds the current industry standard of the “Gigafab”. In contemporary semiconductor nomenclature, a “Megafab” typically refers to a site with a monthly capacity of roughly 25,000 wafer starts per month (WSPM), while a “Gigafab” is defined as a facility capable of producing more than 100,000 WSPM.
Musk has indicated that Tesla’s requirements for AI compute—driven by the fifth-generation AI chip (AI5), the Optimus humanoid robot, and the Dojo supercomputer—will eventually outstrip the available capacity of external foundries, even under their best-case production scenarios.
Consequently, the Terafab is envisioned as a “gigantic chip fab” intended to reduce reliance on vendors like Nvidia, TSMC, and Samsung. A defining characteristic of the Terafab vision is the integration of logic, memory, and packaging processes within a single massive production complex located in the United States. Musk has specifically noted that memory semiconductors could become a greater bottleneck for AI progress than system-on-chip (SoC) logic, necessitating a facility that can mitigate supply shocks across the entire silicon stack.
Tesla will face tremendous financial and logistical hurdles to achieving Terafab scale, let alone the number of diverse talents it needs for the operation. While a standard advanced-node fab costs approximately $25 billion to commission, reaching Terafab scale could require capital expenditures in the range of one trillion dollars over a decade. Furthermore, the construction of such a facility would be contingent on securing a massive allocation of lithography equipment from ASML, the world’s sole provider of Extreme Ultraviolet (EUV) machines—a supply chain where Tesla currently holds no established priority over incumbent giants like Intel, TSMC, and Samsung.
TSMC’s Foundation of Precision
The construction of a semiconductor fabrication plant is a specialized engineering discipline that prioritizes environmental stability and contamination control over traditional architectural metrics. For its Arizona project (Fab 21), TSMC relies on a sophisticated hierarchy of contractors, led by United Integrated Services (UIS) and Marketech International Corporation. Their role is multidisciplinary, encompassing high-tech factory planning, engineering design, and the “tool hook-up” phase—the critical process of connecting multi-million dollar manufacturing equipment to the fab’s internal infrastructure.
These environments must be designed to eliminate dust, airborne particles, and chemical contaminants that could ruin sensitive silicon components.
Vibration Control and Seismic Engineering

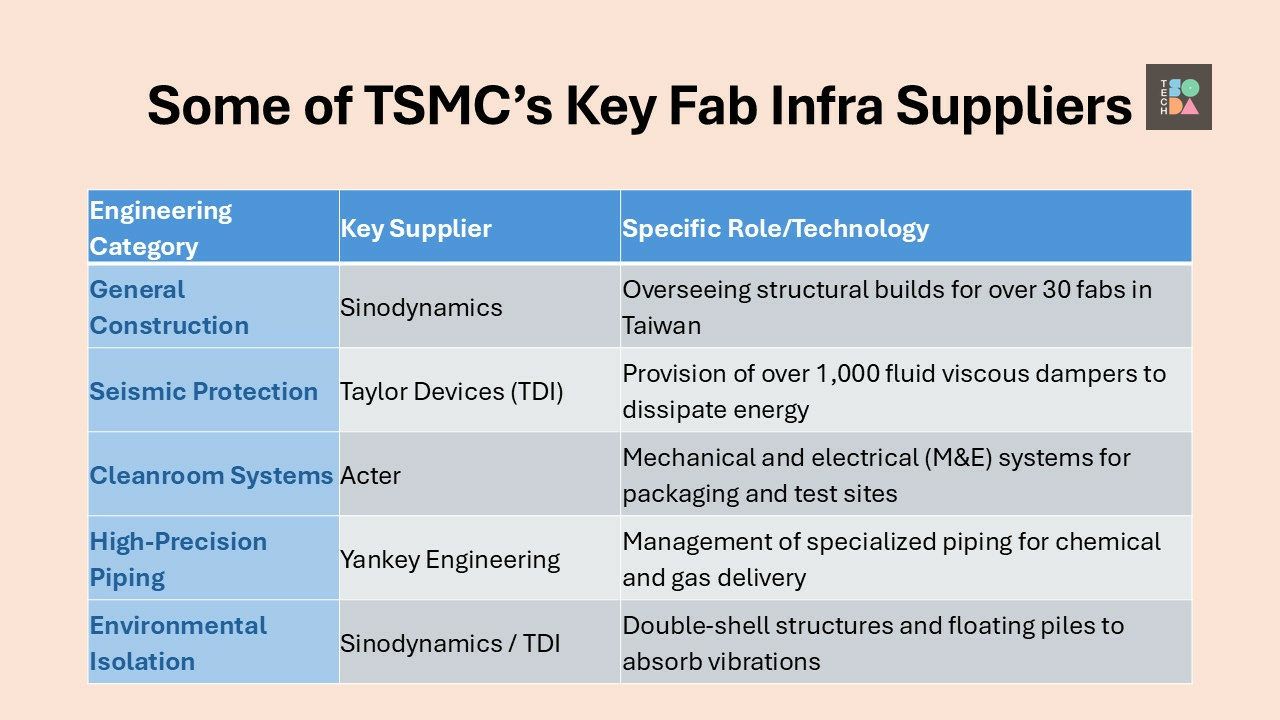

As semiconductor process nodes shrink to the 2nm and A16 (1.6nm) levels, the tolerance for physical vibration becomes effectively zero. Microscopic movements can cause misalignments in the lithography pattern, leading to faulty chips and significant financial losses. To protect the manufacturing process, TSMC employs advanced vibration-control techniques, often partnering with specialized firms like Taylor Devices (TDI) and Sinodynamics.
